3-in-1 CBCT · Panoramic · Cephalometric
FinScan F350Dental cone-beam CT that pays for itself
A Canon Japanese x-ray tube, a 16×16 cm flat-panel detector and 9-second CT scans — with implant planning, airway analysis and AI cloud reporting built in. Sold, installed and supported by Pro Elite Dental.
- In stock
- Free shipping
- Financing over $5,000
Or call 801-430-9229 · Estimated delivery 1–6 weeks · Download the brochure
- 9s
- CT scan time
- Canon
- Japanese x-ray tube
- 16×16cm
- Flat-panel detector
- 3 FOV
- 16×10 · 8×8 · 4×4
- 1–6 wks
- Estimated delivery

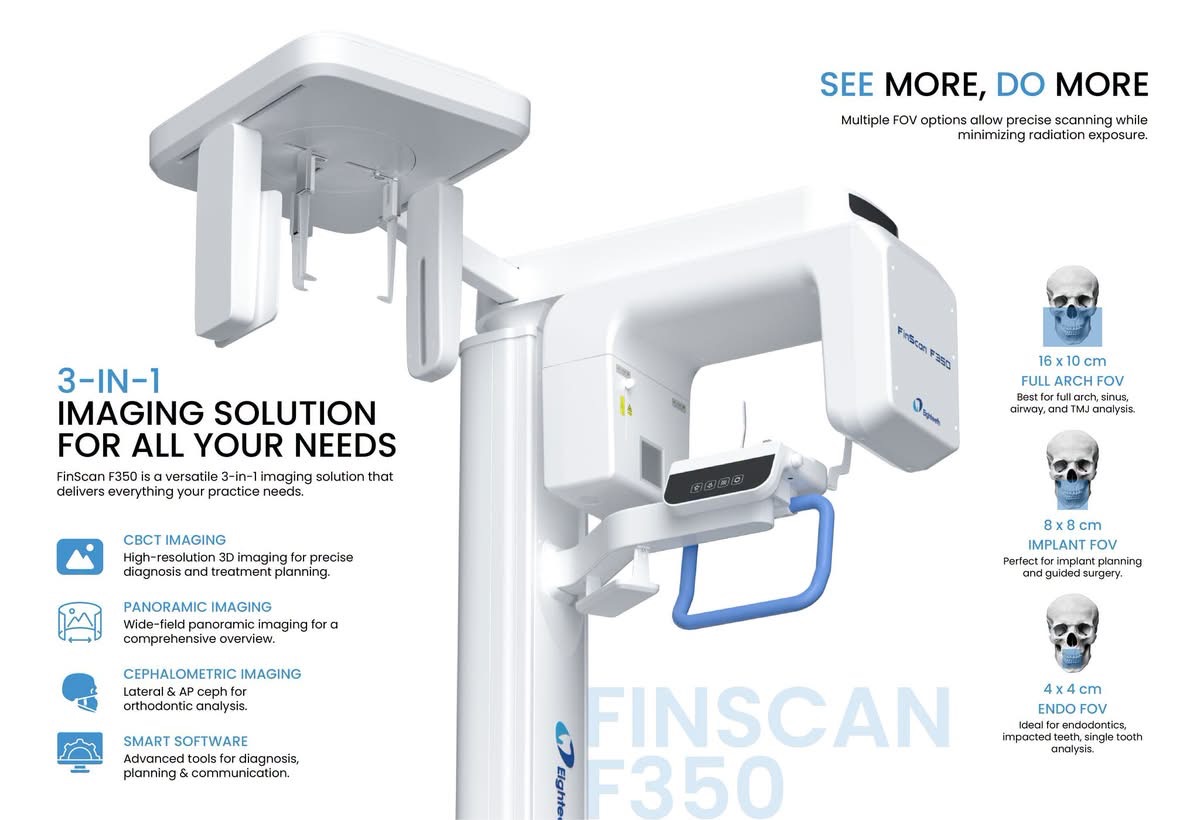

3-in-1 imaging
One machine for all your needs
FinScan F350 replaces three separate purchases — CBCT, panoramic and cephalometric — in a single upright unit with one workstation and one workflow.
CBCT Imaging
High-resolution 3D imaging for precise diagnosis and treatment planning.
Panoramic Imaging
Wide-field panoramic imaging for a comprehensive overview in 14 seconds.
Cephalometric Imaging
Lateral & AP ceph plus carpal imaging for complete orthodontic analysis.
Smart Software
Advanced tools for diagnosis, implant planning and patient communication.
See more, do more
Three field-of-view options let you scan exactly what you need and keep patient dose down.
- 16 × 10 cm
Full Arch FOV
Best for full arch, sinus, airway and TMJ analysis.
- 8 × 8 cm
Implant FOV
Perfect for implant planning and guided surgery.
- 4 × 4 cm
Endo FOV
Ideal for endodontics, impacted teeth and single tooth analysis.

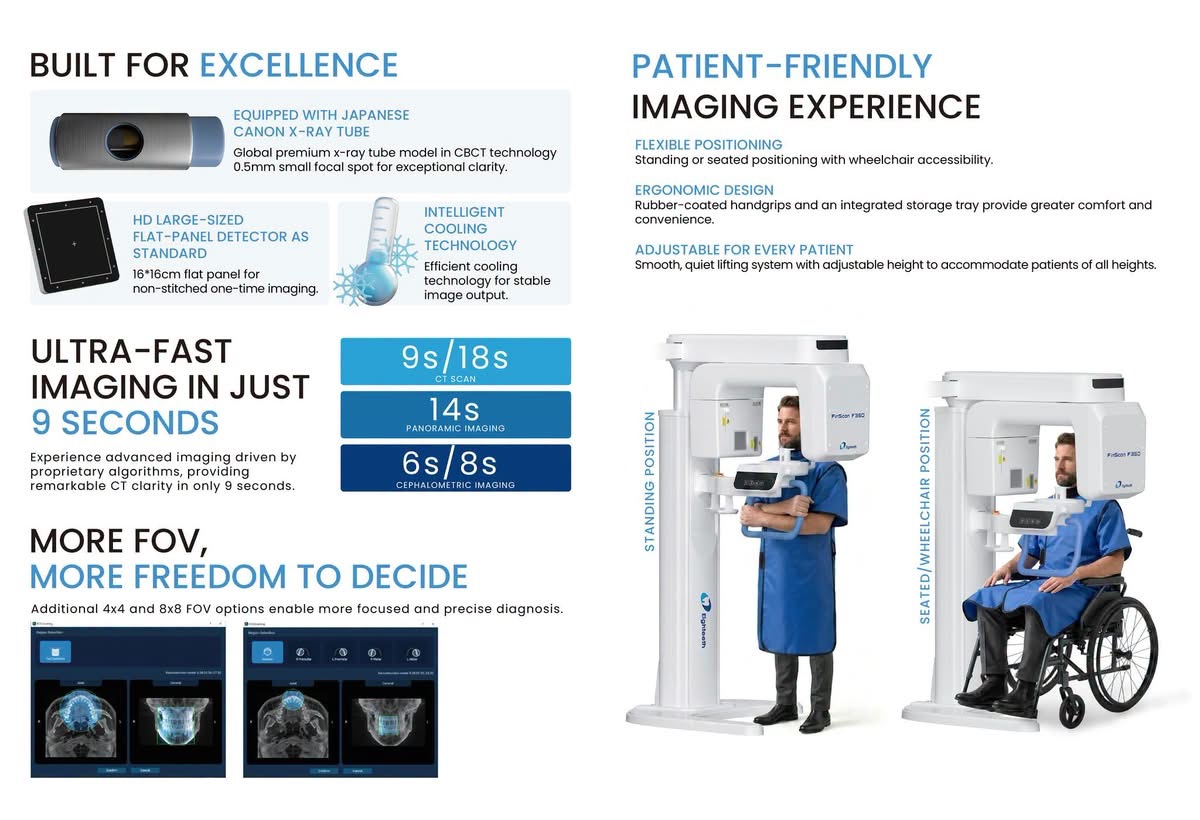

Built for excellence
Premium hardware, 9-second scans
Every part of the imaging chain is specified for clarity — then driven by proprietary algorithms that keep scan times remarkably short.
Japanese Canon X-Ray Tube
The global premium x-ray tube in CBCT, with a 0.5 mm small focal spot for exceptional clarity.
HD Large Flat-Panel Detector
16×16 cm flat panel as standard — true non-stitched, one-time imaging.
Intelligent Cooling
Efficient cooling technology keeps image output stable through a busy schedule.
Proprietary FinScan Algorithms
Remarkable CT clarity in as little as 9 seconds, with low-dose HD reconstruction.
9s / 18s
CT scan
14s
Panoramic imaging
6s / 8s
Cephalometric imaging
Patient experience
Patient-friendly from the first scan

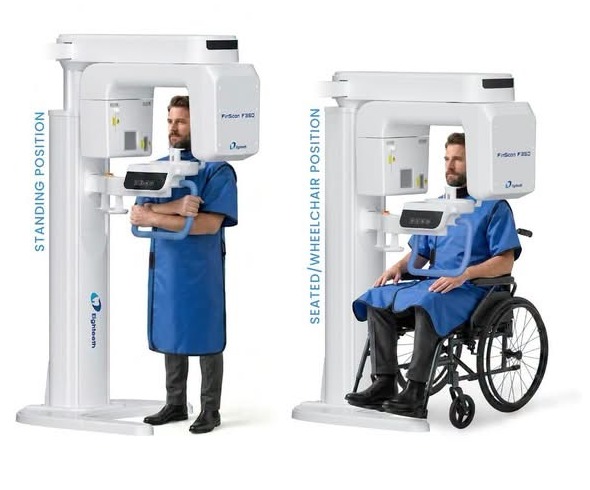

A calm, quiet exam that works for every patient in your chair — including those who cannot stand.
Flexible Positioning
Standing or seated positioning with full wheelchair accessibility.
Ergonomic Design
Rubber-coated handgrips and an integrated storage tray for comfort and convenience.
Adjustable For Every Patient
Smooth, quiet lifting system with 700 mm of travel to accommodate patients of all heights.

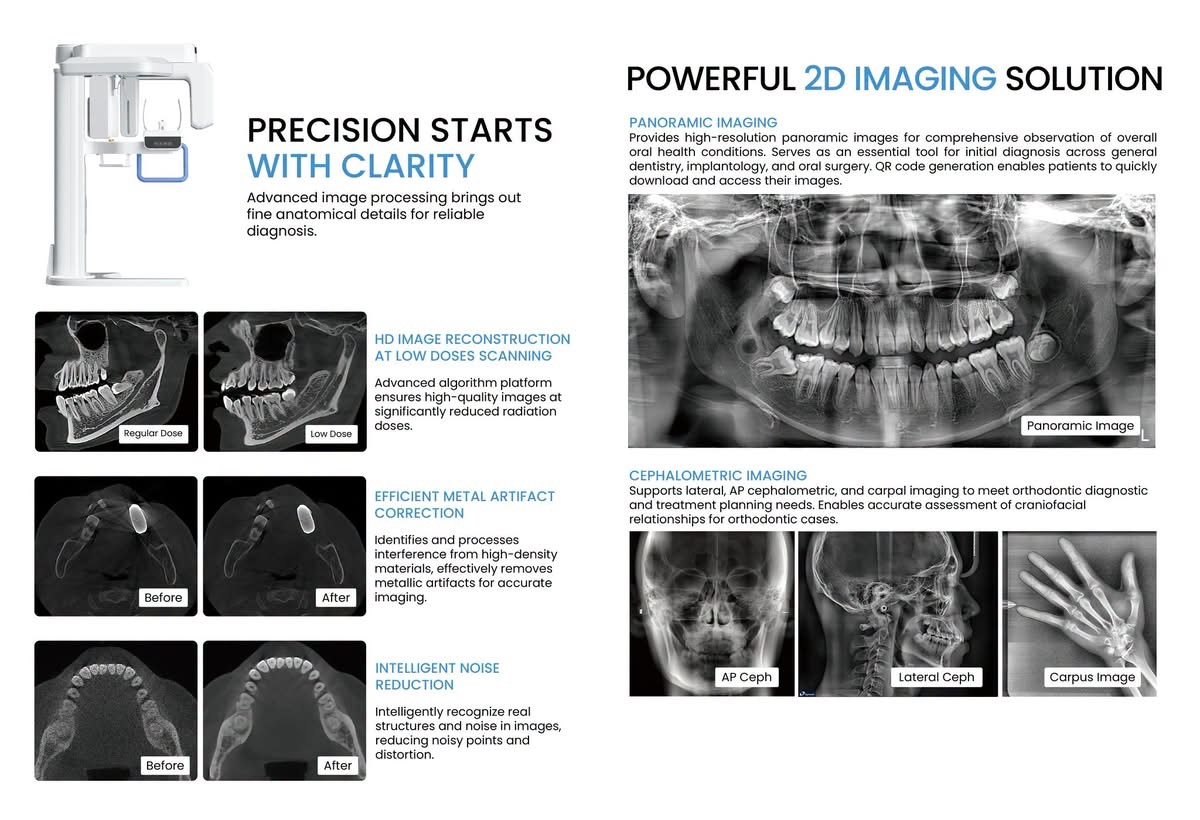

Image quality
Precision starts with clarity
Advanced image processing brings out fine anatomical detail — at lower dose, with metal artifacts and noise handled automatically.
HD Reconstruction at Low Dose
An advanced algorithm platform delivers high-quality images at significantly reduced radiation doses.
Efficient Metal Artifact Correction
Identifies and processes interference from high-density materials to remove metallic artifacts.
Intelligent Noise Reduction
Separates real structures from noise, reducing noisy points and distortion.

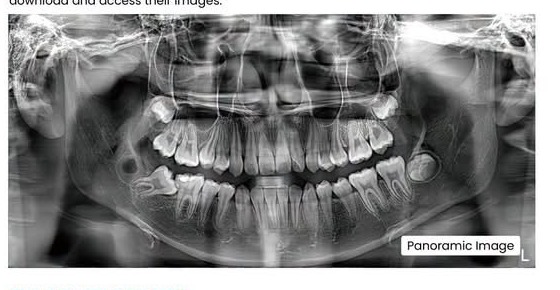

Panoramic image · lateral, AP ceph and carpal imaging also supported

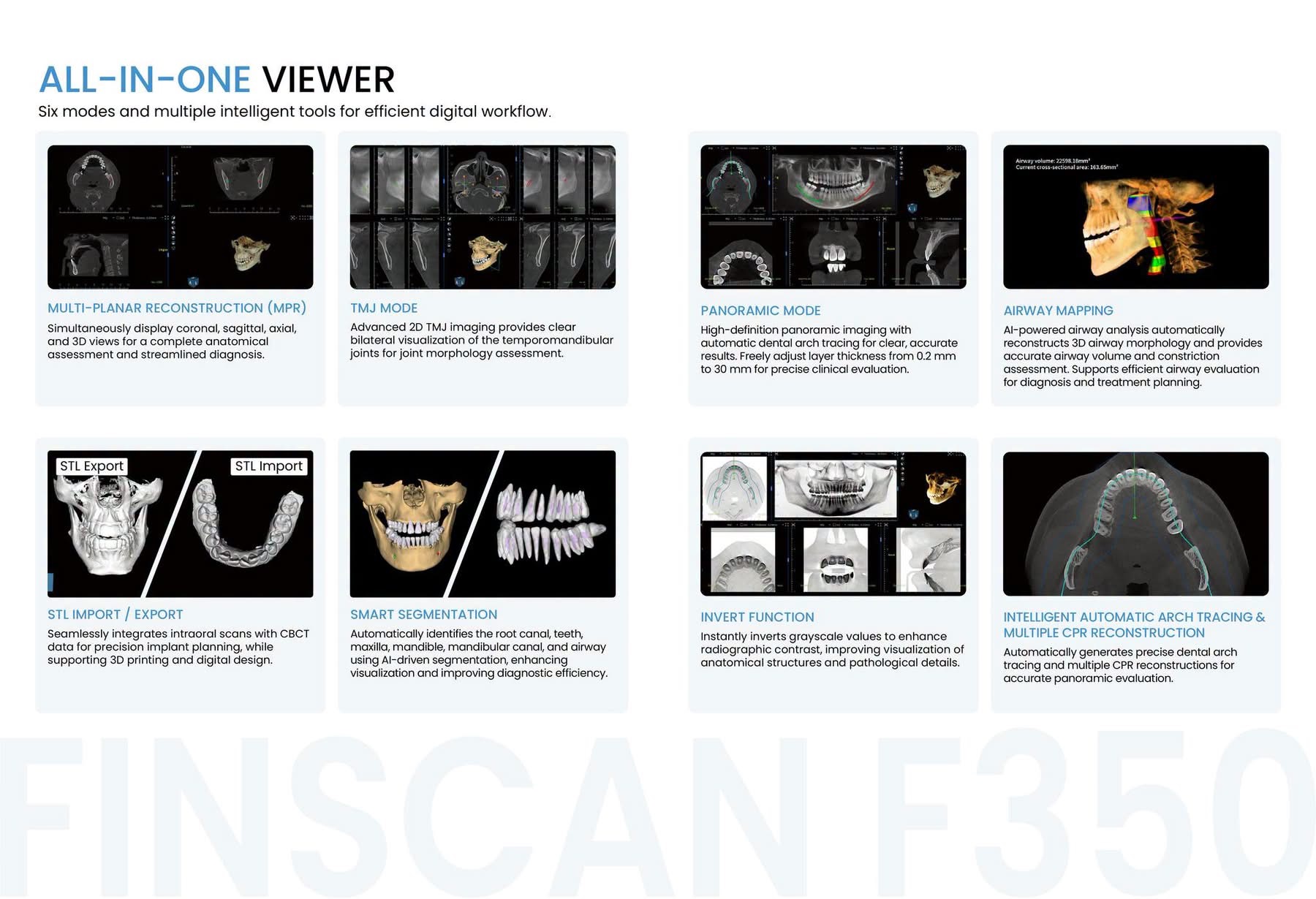

All-in-one viewer
Six modes, one digital workflow
Every tool your team needs to read, plan and explain a case lives in a single viewer — no plugin licensing, no extra seats.
Multi-Planar Reconstruction
Coronal, sagittal, axial and 3D views side by side for a complete anatomical assessment.
TMJ Mode
Advanced 2D TMJ imaging with clear bilateral visualization for joint morphology assessment.
Panoramic Mode
Automatic dental arch tracing with adjustable layer thickness from 0.2 mm to 30 mm.
Airway Mapping
AI-powered 3D airway reconstruction with volume and constriction assessment.
STL Import / Export
Merge intraoral scans with CBCT data for precision implant planning and 3D printing.
Smart Segmentation
AI identifies root canal, teeth, maxilla, mandible, mandibular canal and airway automatically.
Invert Function
Instantly inverts grayscale values to enhance contrast and reveal pathological detail.
Automatic Arch Tracing & CPR
Generates precise arch tracing and multiple CPR reconstructions for accurate evaluation.

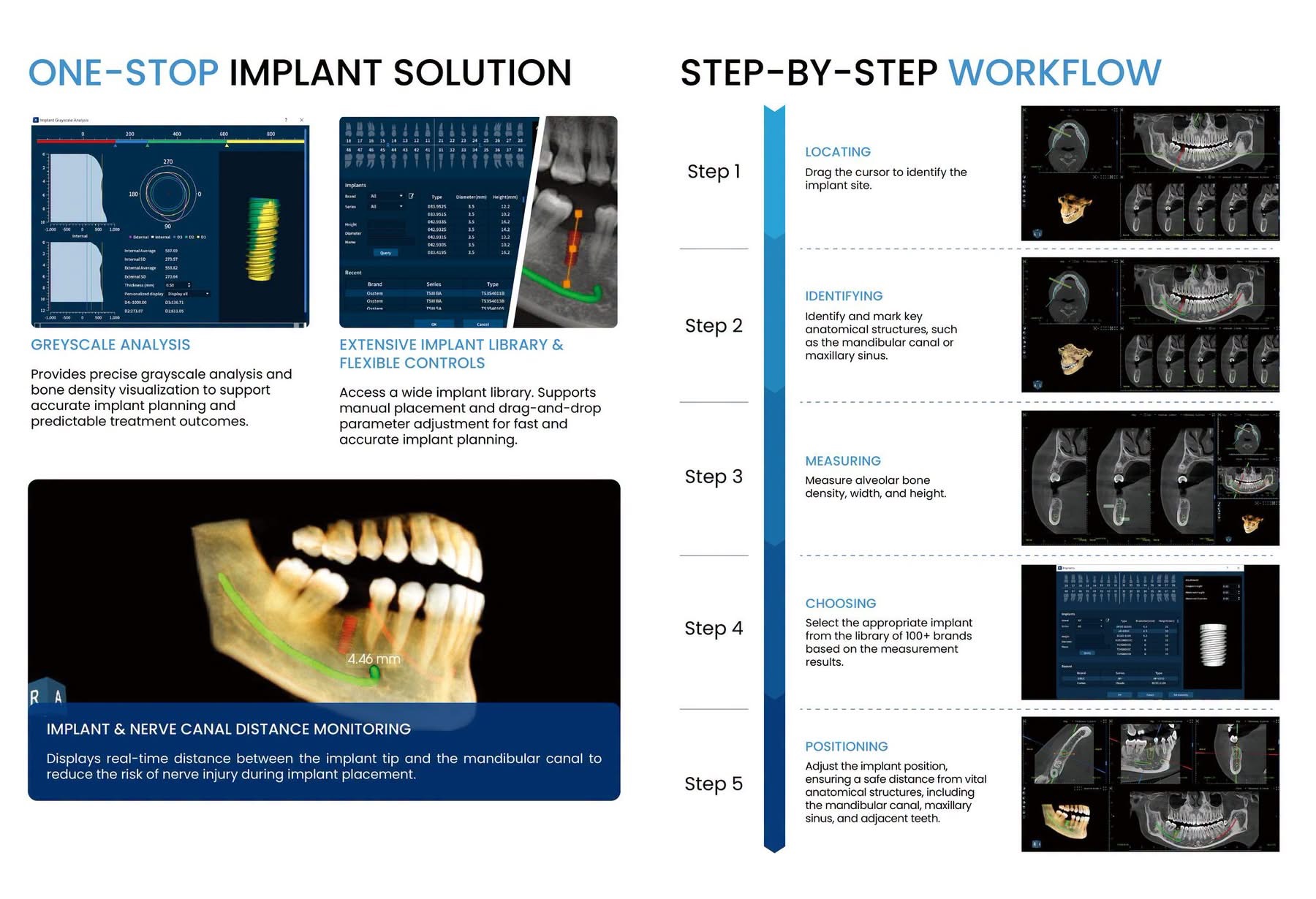

One-stop implant solution
Plan the case in five steps

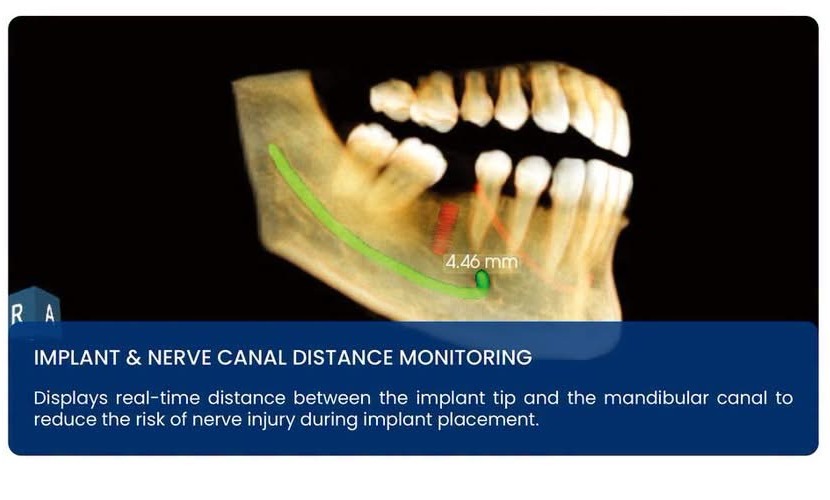

Greyscale bone-density analysis, a 100+ brand implant library and live implant-to-nerve distance monitoring — all inside the same software.
- 01
Locating
Drag the cursor to identify the implant site.
- 02
Identifying
Mark key anatomy such as the mandibular canal or maxillary sinus.
- 03
Measuring
Measure alveolar bone density, width and height.
- 04
Choosing
Select the implant from a library of 100+ brands based on measurements.
- 05
Positioning
Adjust position for safe distance from the canal, sinus and adjacent teeth.
Full brochure
Read every page, then take it with you
Flip through the complete FinScan F350 brochure below. Click any page to enlarge it, or get the full PDF sent straight to your device.

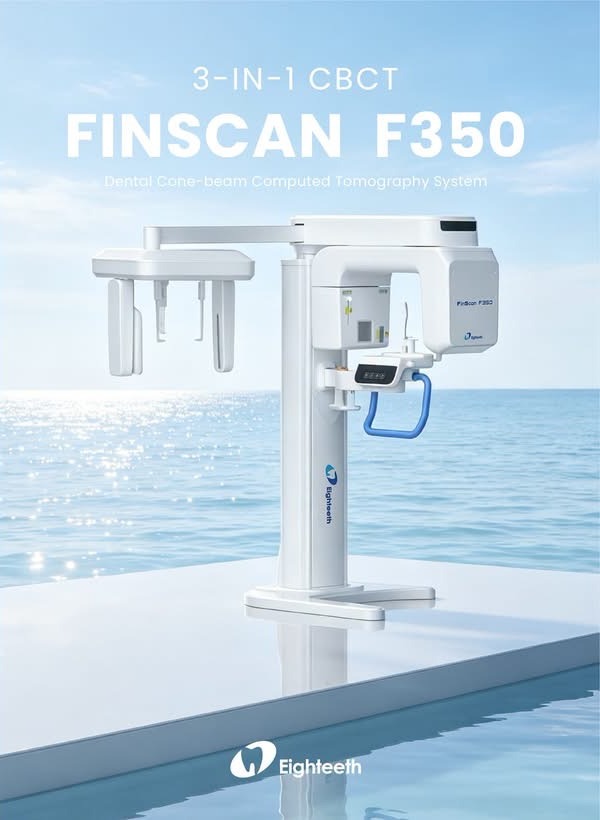

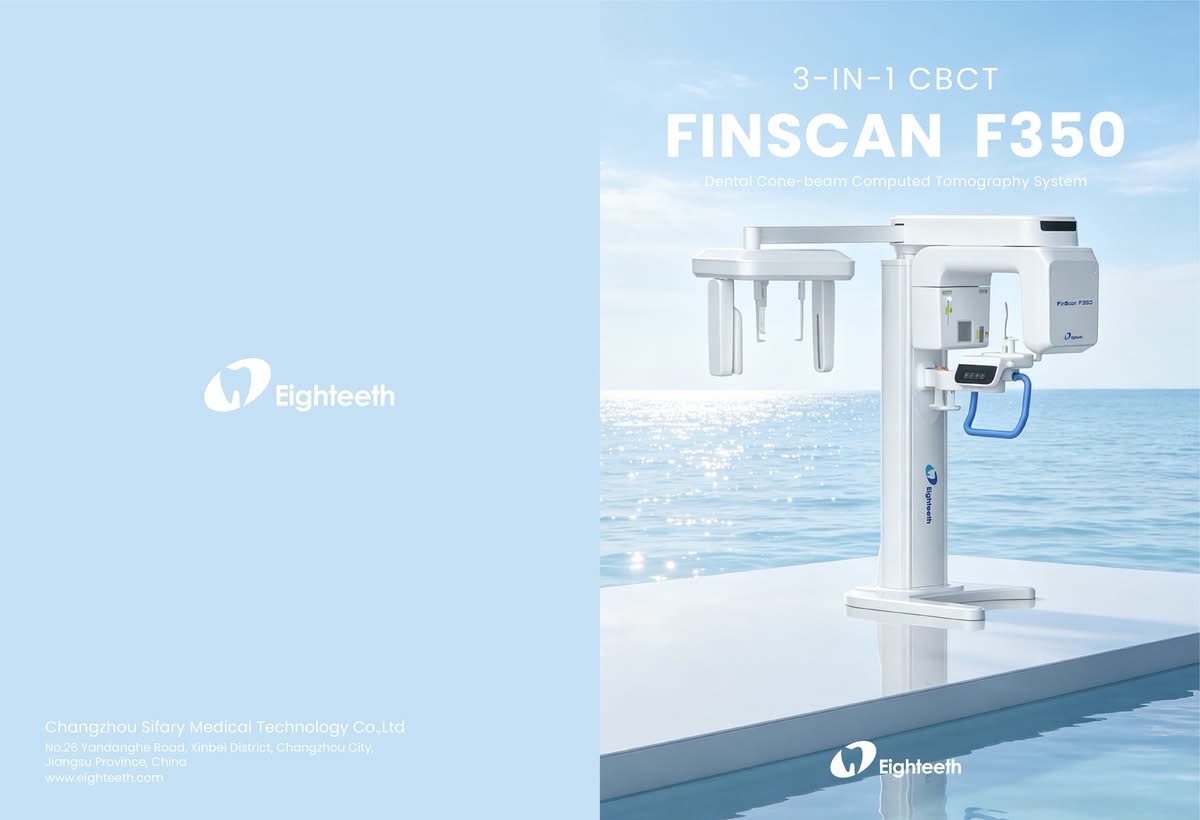

Page 1 of 8 — Cover — FinScan F350 3-in-1 CBCT
Get the PDF brochure
Enter your email and the 8-page PDF downloads immediately — no waiting on an inbox.

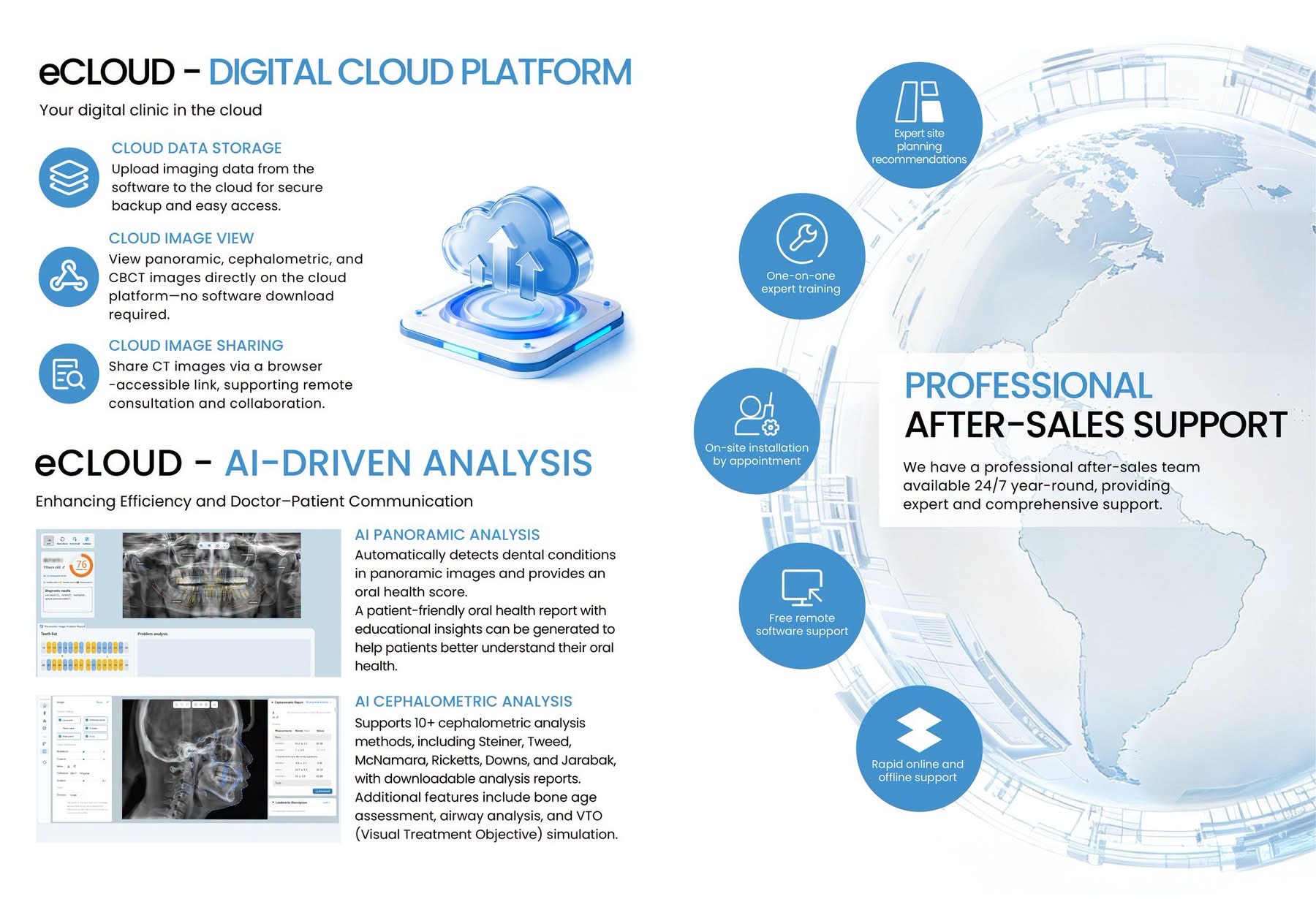

eCloud platform
Your digital clinic in the cloud
Store, view and share studies from any browser, add AI panoramic and cephalometric reporting, and lean on a support team that answers 24/7.
Cloud Data Storage
Upload imaging data straight from the software for secure backup and easy access.
Cloud Image Viewing
View panoramic, cephalometric and CBCT images in the browser — no software download.
Cloud Image Sharing
Share CT images with a link for remote consultation and referral collaboration.
AI Panoramic Analysis
Automatically detects dental conditions and generates a patient-friendly oral health report.
AI Cephalometric Analysis
10+ analysis methods including Steiner, Tweed, McNamara, Ricketts, Downs and Jarabak.
24/7 After-Sales Support
Site planning, on-site installation, one-on-one training and free remote software support.

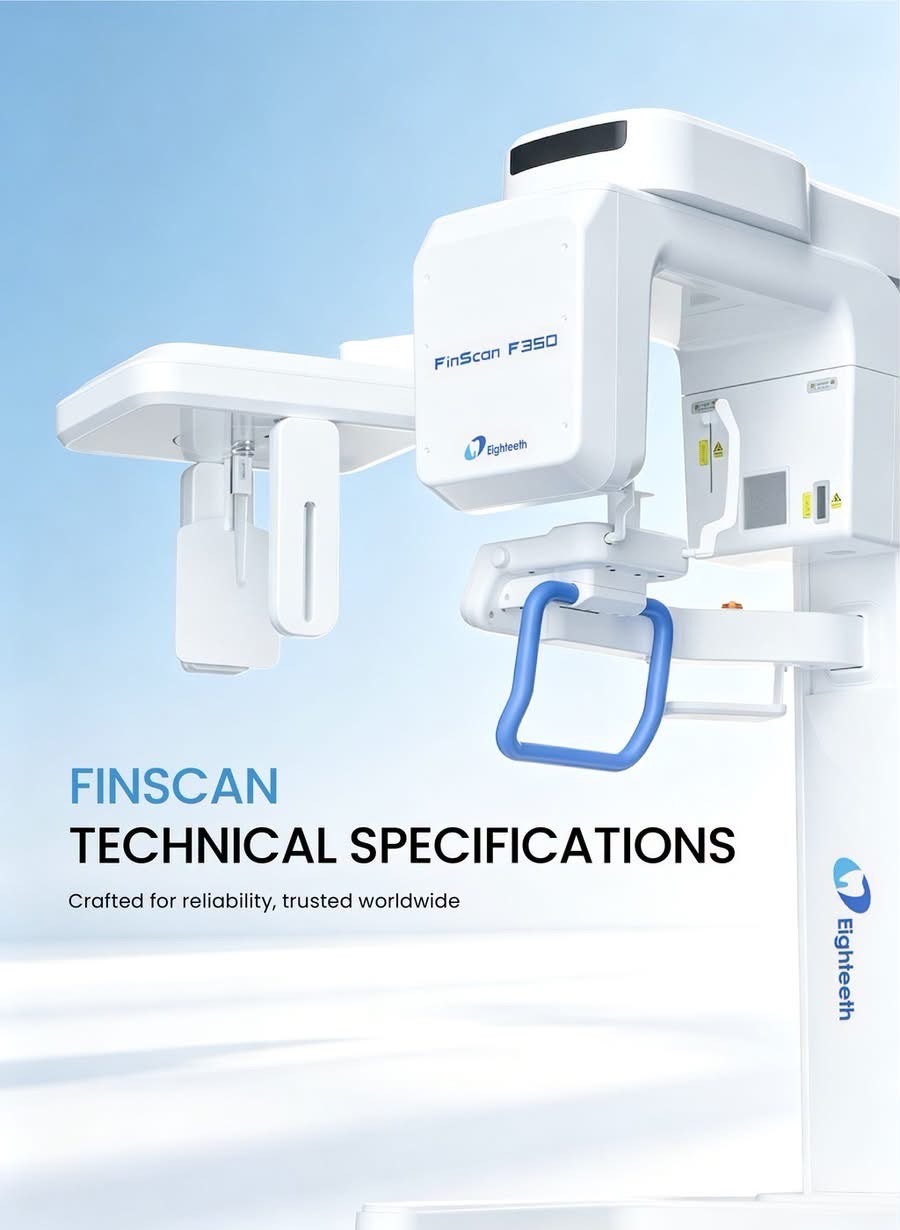

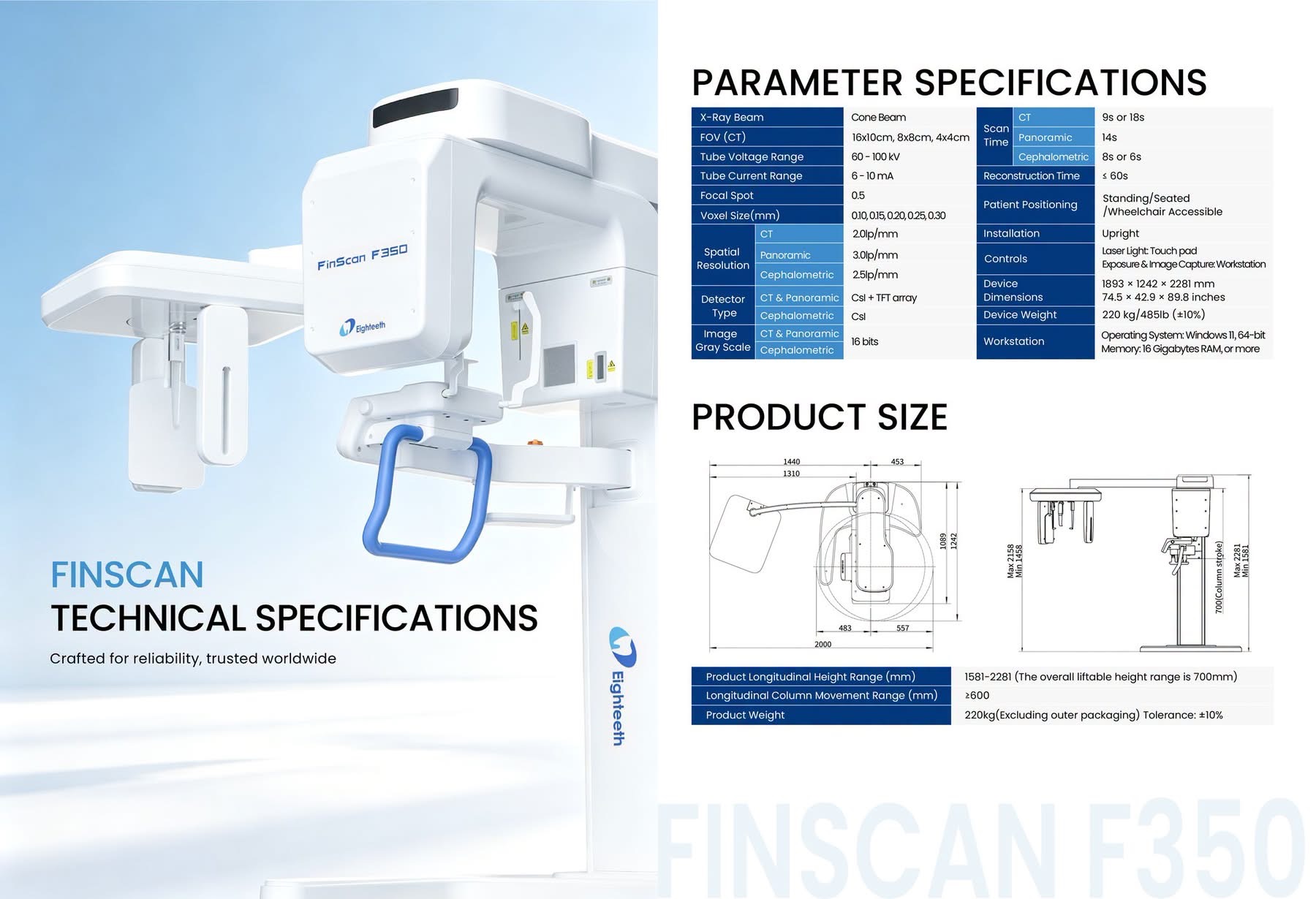

Technical specifications
Every number, in the open
Two configurations are available: CBCT Standard (with the cephalometric arm) and CBCT without Ceph. Both share the same detector, tube and software.
Imaging
- X-Ray Beam
- Cone Beam
- FOV (CT)
- 16×10 cm, 8×8 cm, 4×4 cm
- Tube Voltage Range
- 60 – 100 kV
- Tube Current Range
- 6 – 10 mA
- Focal Spot
- 0.5 mm
- Voxel Size
- 0.10, 0.15, 0.20, 0.25, 0.30 mm
- Spatial Resolution
- CT 2.0 lp/mm · Panoramic 3.0 lp/mm · Ceph 2.5 lp/mm
- Detector Type
- CT & Panoramic: CsI + TFT array · Cephalometric: CsI
- Image Gray Scale
- 16 bits
Performance & Workflow
- Scan Time
- CT 9s or 18s · Panoramic 14s · Cephalometric 8s or 6s
- Reconstruction Time
- ≤ 60s
- Patient Positioning
- Standing / Seated / Wheelchair accessible
- Installation
- Upright
- Controls
- Laser light touch pad · Exposure & image capture at workstation
- Workstation
- Windows 11 64-bit, 16 GB RAM or more
Dimensions
- Device Dimensions
- 1893 × 1242 × 2281 mm (74.5 × 42.9 × 89.8 in)
- Device Weight
- 220 kg / 485 lb (±10%)
- Longitudinal Height Range
- 1581 – 2281 mm (700 mm liftable range)
- Column Movement Range
- ≥ 600 mm
FAQ
Questions before you buy
Request pricing
Get your FinScan F350 quote
Tell us about your practice and we'll send exact pricing, financing terms and an installation timeline — no obligation.
- Personalized quote within one business day
- Financing options on purchases over $5,000
- Free shipping, installation guidance and training
- US-based support with 24/7 remote assistance
